Meteorology & Weather Prediction: A Technical Reference

1. The Mathematical Foundation of Numerical Weather Prediction (NWP)

1.1 What is NWP?

Numerical Weather Prediction is the art of integrating a system of partial differential equations that describe the evolution of the atmosphere forward in time, starting from an estimate of the current atmospheric state. Every major weather forecast you have ever seen — whether from ECMWF, NOAA, or AEMET — is ultimately the output of this process.

The atmosphere is a thin, stratified, rotating fluid shell on a sphere. Its governing equations are variants of the Navier-Stokes equations, augmented with thermodynamics, moisture physics, and the effects of Earth's rotation and spherical geometry.

1.2 The Primitive Equations

The standard set used in operational NWP is known as the Primitive Equations (PEs). They are obtained from the full Navier-Stokes equations by applying two approximations: the hydrostatic approximation (vertical accelerations are negligible compared to the gravitational force) and the shallow-atmosphere approximation (the depth of the atmosphere is small compared to Earth's radius \(a\)).

We work in a coordinate system where the horizontal coordinates are longitude \(\lambda\) and latitude \(\phi\), and the vertical coordinate is pressure \(p\) (isobaric coordinates), which is more natural than geometric height because it automatically follows the mass of the atmosphere.

Momentum Equations (Horizontal)

\[\frac{Du}{Dt} - \left(f + \frac{u \tan\phi}{a}\right)v = -\frac{1}{a\cos\phi}\frac{\partial \Phi}{\partial \lambda} + F_\lambda\]

\[\frac{Dv}{Dt} + \left(f + \frac{u \tan\phi}{a}\right)u = -\frac{1}{a}\frac{\partial \Phi}{\partial \phi} + F_\phi\]

where:

• \(u\), \(v\) — zonal (eastward) and meridional (northward) wind components \([\text{m s}^{-1}]\)
• \(f = 2\Omega\sin\phi\) — Coriolis parameter, with \(\Omega = 7.292 \times 10^{-5}\ \text{rad s}^{-1}\) Earth's angular velocity
• \(\Phi = gz\) — geopotential \([\text{m}^2 \text{s}^{-2}]\), where \(g\) is gravitational acceleration and \(z\) is geometric height
• \(F_\lambda, F_\phi\) — frictional/turbulent forcing terms
• \(\frac{D}{Dt} = \frac{\partial}{\partial t} + \frac{u}{a\cos\phi}\frac{\partial}{\partial \lambda} + \frac{v}{a}\frac{\partial}{\partial \phi} + \dot{p}\frac{\partial}{\partial p}\) — material (Lagrangian) derivative in pressure coordinates

The Coriolis term \(fv\) is what curves moving air masses into cyclonic and anticyclonic patterns — the term responsible for the large-scale rotating structure of weather systems.

Hydrostatic Equation

The hydrostatic approximation replaces the vertical momentum equation with the simpler balance:

\[\frac{\partial \Phi}{\partial p} = -\frac{RT}{p}\]

where \(R = 287\ \text{J kg}^{-1} \text{K}^{-1}\) is the specific gas constant for dry air and \(T\) is temperature. This diagnostic relationship means vertical motion \(\dot{p} = Dp/Dt\) is not a prognostic variable but is diagnosed from horizontal divergence.

Thermodynamic Energy Equation

\[\frac{DT}{Dt} - \frac{RT\,\omega}{c_p\, p} = \frac{Q}{c_p}\]

where:

• \(\omega = \dot{p} = Dp/Dt\) — vertical velocity in pressure coordinates \([\text{Pa s}^{-1}]\)
• \(c_p = 1004\ \text{J kg}^{-1}\text{K}^{-1}\) — specific heat of dry air at constant pressure
• \(Q\) — diabatic heating rate per unit mass (radiation, latent heat release from condensation, turbulent heat flux) \([\text{W kg}^{-1}]\)

The term \(\frac{RT\,\omega}{c_p\, p}\) represents adiabatic cooling/warming: rising air (negative \(\omega\) in pressure coordinates) cools as it expands.

Continuity Equation (Mass Conservation)

\[\frac{\partial u}{\partial \lambda}\frac{1}{a\cos\phi} + \frac{\partial(v\cos\phi)}{\partial \phi}\frac{1}{a\cos\phi} + \frac{\partial \omega}{\partial p} = 0\]

This states that the three-dimensional divergence of the wind is zero — what flows in horizontally must flow out vertically. This equation is used to diagnose \(\omega\) from the horizontal wind field.

Equation of State

\[p = \rho R T\]

where \(\rho\) is density \([\text{kg m}^{-3}]\). In pressure coordinates this is implicit.

Water Vapour Continuity

\[\frac{Dq}{Dt} = S_q\]

where \(q\) is specific humidity \([\text{kg kg}^{-1}]\) and \(S_q\) represents sources and sinks from condensation, evaporation, and precipitation. Modern NWP models carry additional prognostic variables for cloud liquid water, cloud ice, rain, snow, and graupel.

1.3 Discretisation and Numerical Methods

The continuous PDE system above cannot be solved analytically. Operational models discretise it using one of two approaches:

Spectral methods (ECMWF IFS) The horizontal fields are expanded as truncated series of spherical harmonics \(Y_n^m(\lambda, \phi)\):

\[u(\lambda, \phi, p, t) \approx \sum_{m=-M}^{M}\sum_{n=|m|}^{N} \hat{u}_n^m(p,t)\, Y_n^m(\lambda, \phi)\]

Derivatives in spectral space are exact multiplications. The ECMWF IFS at resolution T\(_\text{co}\)1279 retains \(N \approx 1279\) wavenumbers, corresponding to a grid spacing of roughly 9 km.

Finite-difference / finite-volume methods (GFS, WRF) Fields are stored on a discrete grid. Spatial derivatives are approximated by finite differences. Modern models use semi-implicit, semi-Lagrangian time-stepping to allow large time steps without numerical instability, exploiting the linearity of the gravity-wave terms.

1.4 Chaos and the Butterfly Effect

The primitive equations form a nonlinear dynamical system. Lorenz (1963) showed that even a dramatically simplified 3-variable system:

\[\dot{X} = \sigma(Y - X), \qquad \dot{Y} = X(\rho - Z) - Y, \qquad \dot{Z} = XY - \beta Z\]

exhibits sensitive dependence on initial conditions: trajectories starting from infinitesimally different points diverge exponentially at a rate characterised by the largest Lyapunov exponent \(\lambda_1 > 0\). For the real atmosphere, \(\lambda_1^{-1} \approx 2\)–3 days, implying that errors double roughly every two days. This is the fundamental mathematical reason why deterministic weather forecasts beyond ~10 days are impossible, regardless of model resolution or computing power.

---

2. Observational Data and Ingestion

The initial condition — the state of the atmosphere at time \(t_0\) — must be estimated from real observations. This is the analysis step, and its quality is the single largest source of forecast error.

2.1 Surface Weather Stations (SYNOP)

A global network of roughly 10,000 land-based stations (WMO SYNOP format) reporting every hour or three hours: temperature \(T\), dewpoint \(T_d\), pressure \(p\) (reduced to mean sea level), wind speed and direction \((\vec{v})\), visibility, precipitation, and present weather. Spain's AEMET operates approximately 800 automatic weather stations (EMA network). Data are encoded in fixed-format or BUFR messages and disseminated over the WMO Global Telecommunication System (GTS).

2.2 Radiosondes

Balloon-borne instrument packages launched twice daily (00 UTC and 12 UTC) from roughly 800 stations worldwide. They measure vertical profiles of \(T\), \(T_d\), \(p\), \(\vec{v}\) from the surface up to ~30–35 km (stratopause). Each profile contains \(\sim 200\)–1000 levels of data. Radiosondes are the primary in-situ source of upper-air information and serve as the ground truth for validating satellite retrievals.

2.3 Aircraft (AMDAR/AIREP)

Commercial aircraft equipped with AMDAR (Aircraft Meteorological Data Relay) systems report \(T\) and \(\vec{v}\) automatically during ascent, cruise, and descent. Roughly 700,000–1,000,000 reports per day globally. Particularly dense over Europe and North America; sparse over oceans and the Southern Hemisphere — a critical data gap.

2.4 Ocean Buoys and Ships

• Moored buoys: Fixed position, continuous reporting of sea-surface temperature (SST), surface wind, pressure.
• Drifting buoys (Argo programme, ~4,000 active): Profiling floats that cycle between the surface and 2000 m depth, measuring \(T\) and salinity.
• Voluntary Observing Ships (VOS): Merchant vessels reporting surface marine observations.

2.5 Weather Radars

Ground-based Doppler radars operating at C-band or S-band transmit pulses and measure the backscattered power from precipitation particles. Key retrieved quantities:

• Reflectivity \(Z\) \([\text{dBZ}]\): proxy for precipitation intensity via the \(Z\)–\(R\) relationship \(Z = aR^b\).
• Radial velocity: Doppler-shifted return gives the component of wind along the radar beam. A network of radars enables dual-Doppler wind retrieval.
• Dual-polarisation (modern systems): Co- and cross-polar returns distinguish rain, hail, snow, and biological targets.

Spatial resolution is typically 0.5–1 km at ranges up to 250 km. Weather radar data are critical for nowcasting (0–6 h).

2.6 Satellites

Satellites provide the most spatially uniform global coverage. Two orbital categories:

Geostationary (GEO): Fixed over the equator at \(\approx 36{,}000\) km altitude. Instruments: Meteosat (EUMETSAT), GOES (NOAA), Himawari (JMA). High temporal resolution (5–15 min), full-disc images. Provide cloud-top temperature (proxy for cloud height), water vapour imagery, and Atmospheric Motion Vectors (AMVs) derived from tracking cloud or water-vapour features between consecutive images.

Low Earth Orbit (LEO): Polar or near-polar orbit at \(\approx 700\)–900 km, revisiting any point every ~12 h (or more frequently for constellations). Instruments include:

• Passive microwave sounders (e.g., AMSU, ATMS): Brightness temperatures in \(O_2\) and \(H_2O\) absorption bands, used to retrieve vertical profiles of \(T\) and humidity.
• Infrared sounders (IASI, CrIS): Hyperspectral infrared spectrometers with thousands of channels, providing high-vertical-resolution \(T\) and humidity profiles.
• Scatterometers (ASCAT): Measure radar backscatter from ocean surface roughness to retrieve near-surface wind speed and direction.
• GNSS Radio Occultation (COSMIC, Metop): GPS signals refracted by the atmosphere; the bending angle profile yields precise \(T\) and humidity soundings with global coverage and no calibration drift.

The assimilation of satellite radiances — not retrieved geophysical variables but the raw brightness temperatures themselves — is the single largest contribution to modern forecast skill.

---

3. Data Assimilation: The Mathematical Bridge

Given a prior estimate of the atmospheric state (the background, \(\mathbf{x}^b\), typically a short-range forecast) and a set of observations \(\mathbf{y}^o\), data assimilation (DA) produces the analysis \(\mathbf{x}^a\): the statistically optimal estimate of the true state \(\mathbf{x}^t\).

The state vector \(\mathbf{x} \in \mathbb{R}^n\) contains all model variables at all grid points. For a global NWP model, \(n \sim 10^8\)–\(10^9\). The observation vector \(\mathbf{y}^o \in \mathbb{R}^m\) may contain \(m \sim 10^6\)–\(10^7\) observations per assimilation cycle (typically 6 or 12 hours).

3.1 Bayesian Framework

Assuming Gaussian errors, Bayes' theorem gives the maximum a posteriori (MAP) analysis as the minimiser of the cost function:

\[J(\mathbf{x}) = \frac{1}{2}(\mathbf{x} - \mathbf{x}^b)^\top \mathbf{B}^{-1}(\mathbf{x} - \mathbf{x}^b) + \frac{1}{2}(\mathbf{y}^o - H(\mathbf{x}))^\top \mathbf{R}^{-1}(\mathbf{y}^o - H(\mathbf{x}))\]

where:

• \(\mathbf{B} \in \mathbb{R}^{n \times n}\) — background error covariance matrix: encodes how errors in \(\mathbf{x}^b\) are spatially correlated. It is never stored explicitly (too large); instead, its action is approximated via spectral or wavelet transforms.
• \(\mathbf{R} \in \mathbb{R}^{m \times m}\) — observation error covariance matrix: combines instrument error and representativity error (the mismatch between what the instrument measures and the corresponding model quantity).
• \(H: \mathbb{R}^n \to \mathbb{R}^m\) — observation operator: maps from model space to observation space (e.g., a radiative transfer model that predicts satellite brightness temperatures from model \(T\) and humidity profiles).

The gradient of \(J\) is:

\[\nabla_\mathbf{x} J = \mathbf{B}^{-1}(\mathbf{x} - \mathbf{x}^b) - \mathbf{H}^\top \mathbf{R}^{-1}(\mathbf{y}^o - H(\mathbf{x}))\]

where \(\mathbf{H} = \partial H / \partial \mathbf{x}\) is the tangent-linear observation operator (Jacobian).

3.2 3D-Var

In 3D-Var (three-dimensional variational assimilation), \(J\) is minimised over the model state at a single time level, ignoring the time dimension. The minimisation is performed iteratively using gradient-based methods (L-BFGS-B). 3D-Var is cheap but does not use the time evolution of observations within the assimilation window — every observation is treated as if it were valid at analysis time.

3.3 4D-Var

4D-Var extends the cost function over a time window \([t_0, t_N]\):

\[J(\mathbf{x}_0) = \frac{1}{2}(\mathbf{x}_0 - \mathbf{x}^b_0)^\top \mathbf{B}^{-1}(\mathbf{x}_0 - \mathbf{x}^b_0) + \frac{1}{2}\sum_{i=0}^{N}(\mathbf{y}^o_i - H_i(\mathbf{x}_i))^\top \mathbf{R}_i^{-1}(\mathbf{y}^o_i - H_i(\mathbf{x}_i))\]

where \(\mathbf{x}_i = \mathcal{M}_{0 \to i}(\mathbf{x}_0)\) is the model state at time \(t_i\) evolved from the control variable \(\mathbf{x}_0\) using the nonlinear model \(\mathcal{M}\).

Computing \(\nabla_{\mathbf{x}_0} J\) requires the adjoint model \(\mathcal{M}^\ast\), which propagates sensitivities backward in time:

\[\nabla_{\mathbf{x}_0} J = \mathbf{B}^{-1}(\mathbf{x}_0 - \mathbf{x}^b_0) + \sum_{i=0}^{N} \mathbf{M}_{0 \to i}^\top \mathbf{H}_i^\top \mathbf{R}_i^{-1}(\mathbf{y}^o_i - H_i(\mathbf{x}_i))\]

where \(\mathbf{M}_{0 \to i}^\top\) is the adjoint of the tangent-linear model. Developing and maintaining the adjoint is a formidable software engineering challenge — ECMWF's 4D-Var system (operational since 1997) remains the gold standard of DA and is one of the primary reasons for ECMWF's consistent forecast superiority.

3.4 Ensemble Kalman Filter (EnKF)

The Ensemble Kalman Filter (Evensen 1994) is a Monte Carlo approximation of the Kalman filter equations. Instead of propagating the full error covariance \(\mathbf{B}\) (which has \(n^2 \sim 10^{16}\)–\(10^{18}\) elements), it is approximated by the sample covariance of an ensemble of \(N_e\) model states \(\{\mathbf{x}^{(k)}\}_{k=1}^{N_e}\):

\[\mathbf{P} \approx \frac{1}{N_e - 1}\sum_{k=1}^{N_e}(\mathbf{x}^{(k)} - \bar{\mathbf{x}})(\mathbf{x}^{(k)} - \bar{\mathbf{x}})^\top\]

The analysis update for each ensemble member is:

\[\mathbf{x}^{a(k)} = \mathbf{x}^{b(k)} + \mathbf{K}\left(\mathbf{y}^{o(k)} - H(\mathbf{x}^{b(k)})\right)\]

where \(\mathbf{y}^{o(k)} = \mathbf{y}^o + \boldsymbol{\epsilon}^{(k)}\) is the observation perturbed with noise \(\boldsymbol{\epsilon}^{(k)} \sim \mathcal{N}(\mathbf{0}, \mathbf{R})\) (the perturbed observations variant), and the Kalman gain matrix is:

\[\mathbf{K} = \mathbf{P}\mathbf{H}^\top(\mathbf{H}\mathbf{P}\mathbf{H}^\top + \mathbf{R})^{-1}\]

The ensemble-based \(\mathbf{P}\) is flow-dependent: the error covariances change with the meteorological situation (different during, say, a blocking high versus an explosive cyclogenesis event). This is the key advantage over static-\(\mathbf{B}\) methods. The Local Ensemble Transform Kalman Filter (LETKF) is widely used operationally due to its embarrassing parallelism.

Many operational centres now use hybrid methods that blend a static \(\mathbf{B}\) with an ensemble-based \(\mathbf{P}\), capturing the benefits of both.

---

4. Reanalysis Datasets

4.1 What is a Reanalysis?

A reanalysis is a retrospective application of a modern, fixed DA system to all available historical observations, producing a spatially complete, physically consistent, long-period gridded record of the atmospheric (and increasingly oceanic and land-surface) state. The two key words are:

• Fixed system: Unlike operational archives, the reanalysis uses a single frozen model version for the entire period. Operational archives suffer from discontinuities whenever the model or DA system is upgraded.
• All available observations: This includes observations that arrived too late for the operational forecast (delayed-mode data), quality-controlled historical ship logs, rescued paper records, etc.

4.2 ERA5: The Gold Standard

ERA5 (ECMWF Re-Analysis 5th generation, Hersbach et al. 2020, Copernicus Climate Change Service) is produced by ECMWF using a 2016 version of the IFS coupled to a land-surface model (HTESSEL) and a wave model. Key specifications:

Property	Value
Horizontal resolution	0.25° × 0.25° (\(\approx\) 31 km)
Vertical levels	137 model levels from surface to 80 km
Temporal resolution	Hourly
Period	1940–present
Variables	\(\sim\)240 surface + pressure-level + single-level fields
Volume	\(\sim\)5 PB total

ERA5 is derived using 10-member 4D-Var with a 12-hour assimilation window, making the background error covariance flow-dependent. This gives it substantially better quality than its predecessor ERA-Interim, particularly in the Southern Hemisphere and upper troposphere.

4.3 Why ERA5 is Preferred for ML and Big Data Models

Operational forecast archives contain a mixture of model versions. A time series of, say, 850 hPa temperature extracted from ECMWF operational analyses will contain spurious jumps every time the model resolution was increased or the physics were updated. This inhomogeneity is devastating for statistical learning: the model will partially learn the model version as a feature.

ERA5 is preferred because:

1. Temporal homogeneity: A single model and DA system throughout. Trends and anomalies in ERA5 reflect actual climate signals, not model upgrades.
2. Complete spatial coverage: No missing values (by construction — the model fills gaps where observations are absent). This is essential for convolutional neural networks and spatiotemporal models that require complete grids.
3. Long record: 1940–present provides sufficient samples for training seasonal and climate-scale models.
4. Uncertainty quantification: The 10-member ensemble spread provides an estimate of analysis uncertainty at each grid point.
5. Reproducibility: The dataset is static (modulo minor corrections) and openly accessible via the CDS API.

Caveats: ERA5 is not observations — it is a model-filtered, smoothed representation. The effective resolution is coarser than the 31 km grid (approximately 2–3 × grid spacing due to spectral smoothing). Sub-grid phenomena (convection, fog, mountain-valley winds) are parameterised and may be biased. Always validate ERA5-derived statistics against independent station observations in your study region.

---

5. Global vs. Regional Models

5.1 The Global Titans

ECMWF IFS (Integrated Forecasting System)

Property	Value
Centre	ECMWF, Reading, UK (intergovernmental consortium)
Core dynamics	Spectral, semi-Lagrangian, semi-implicit
Resolution (operational 2024)	T\(_\text{co}\)1279 \(\approx\) 9 km, 137 levels
Ensemble (ENS)	51 members at T\(_\text{co}\)639 (\(\approx\) 18 km)
DA system	4D-Var (12-h window) + ensemble
Forecast range	Deterministic 10 days; ENS 15 days; extended range 46 days
Renowned for	Upper-air accuracy; tropical cyclone tracks; European medium-range

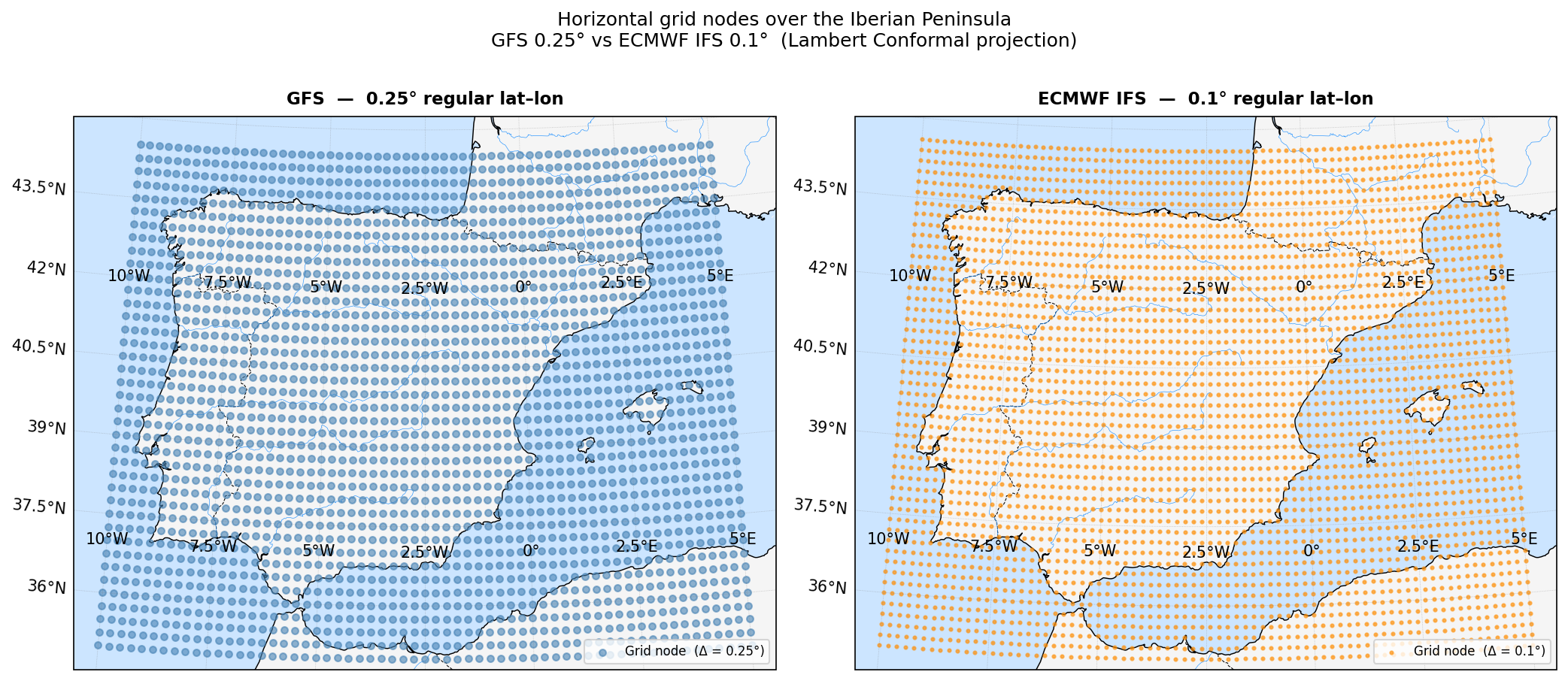

NOAA GFS (Global Forecast System)

Property	Value
Centre	NCEP/EMC, NOAA, USA
Core dynamics	Finite-volume cubed-sphere (FV3) since 2019
Resolution (operational 2024)	C768 \(\approx\) 13 km, 127 levels
Ensemble (GEFS)	31 members at C384 (\(\approx\) 25 km)
DA system	Hybrid EnKF–3D-Var (GSI)
Forecast range	Deterministic 16 days; GEFS 35 days
Renowned for	Open data policy (all output free); rapid updates (every 6 h); US precipitation

Historical performance: Objective verification scores (e.g., anomaly correlation coefficient of 500 hPa geopotential) consistently show ECMWF leading GFS by approximately 12–18 hours in effective forecast skill. The gap has narrowed since GFS adopted FV3, but ECMWF remains the benchmark. The European centre's advantage stems primarily from its superior 4D-Var DA system and more sophisticated convection parameterisation.

5.2 Mesoscale / Regional Models

Global models cannot resolve phenomena below \(\sim\)20–30 km: sea-breeze circulations, orographic precipitation enhancement, urban heat islands, thunderstorm cells. Limited-area models (LAMs) run at higher resolution over a domain of interest, nested inside a global model that provides boundary conditions.

WRF (Weather Research and Forecasting Model)

Open-source, community model developed by NCAR/NOAA. Finite-difference dynamics on an Arakawa-C staggered grid. Widely used for research and many operational applications worldwide. Typical research configurations: 1–4 km horizontal spacing, explicit convection (no parameterisation needed below \(\sim\)4 km). WRF domains can be nested down to \(\mathcal{O}\)(100 m) for wind energy or urban microclimate applications.

HARMONIE-AROME (ALADIN-HIRLAM system)

Convection-permitting model jointly developed by Météo-France and a consortium of European NWP centres (HIRLAM: Nordic countries, Ireland, Spain, Netherlands). Run operationally by AEMET over the Iberian Peninsula at 2.5 km horizontal resolution with 3-hourly updates (HARMONIE-AROME cy43). Key features:

• Non-hydrostatic dynamics: necessary at convection-permitting scales where vertical accelerations are no longer negligible.
• Explicit deep convection: no Kain-Fritsch parameterisation; convective cells are resolved.
• Boundary conditions from the ECMWF IFS: the global ECMWF deterministic run feeds the lateral boundary conditions every 3 hours.
• Focus on high-impact weather: heavy precipitation, strong winds, fog, snow events over complex terrain (Pyrenees, Sistema Central, Sierra Nevada).

The nesting hierarchy is therefore:

\[\underbrace{\text{ECMWF IFS}}_{\approx 9\text{ km, global}} \longrightarrow \underbrace{\text{HARMONIE-AROME}}_{\approx 2.5\text{ km, Iberian Peninsula}} \longrightarrow \underbrace{\text{WRF/custom LAM}}_{\mathcal{O}(100\text{ m–1 km, local})}\]

---

6. Deterministic vs. Ensemble Forecasting

6.1 The Deterministic Paradigm

A deterministic forecast integrates the model equations from a single, best-estimate initial condition. The output is a single trajectory in phase space. Because the atmosphere is chaotic (Section 1.4), this trajectory diverges exponentially from the true trajectory, and the forecast becomes climatologically indistinguishable from a random state at approximately 2 weeks.

6.2 Ensemble Prediction Systems (EPS)

An ensemble runs \(N_e\) forecasts from slightly different initial conditions and/or different model configurations, sampling the uncertainty in both the initial state and the model itself.

Initial condition perturbations are generated by:

• Singular vectors (ECMWF ENS): Find the directions in state space that amplify most over the forecast period. These are the leading singular vectors of the tangent-linear model \(\mathbf{M}\): $\(\mathbf{M}^\top \mathbf{M}\, \mathbf{v}_k = \sigma_k^2\, \mathbf{v}_k\)$ Perturbations along the leading \(\mathbf{v}_k\) (largest \(\sigma_k\)) capture the fastest-growing errors.

• Ensemble Data Assimilation (EDA, ECMWF): Run the full DA system in ensemble mode; the spread of the analysis ensemble provides statistically consistent initial perturbations.

• Breeding of Growing Modes (NCEP/GEFS): Iteratively amplify and rescale random perturbations to isolate the fastest-growing structures.

Stochastic model perturbations address model uncertainty:

• SPPT (Stochastically Perturbed Parameterisation Tendencies): Multiply parameterised tendencies (convection, boundary layer, radiation) by a spatiotemporally correlated random field \(r(\mathbf{x},t)\), \(\langle r \rangle = 1\).
• SKEB (Stochastic Kinetic Energy Backscatter): Inject random streamfunction perturbations to represent energy backscatter from unresolved scales.

6.3 Probabilistic Output

The ensemble produces a probability distribution over future states. For a scalar quantity \(X\) (e.g., 24-h precipitation at a point), the empirical distribution is:

\[\hat{F}(x) = \frac{1}{N_e}\sum_{k=1}^{N_e}\mathbf{1}[X^{(k)} \leq x]\]

Standard derived products include:

• Probability of exceedance: \(P(X > x_0) = 1 - \hat{F}(x_0)\). E.g., probability of precipitation exceeding 50 mm in 24 hours.
• Ensemble mean: \(\bar{X} = N_e^{-1}\sum_k X^{(k)}\), smoother than any individual member (variance-cancellation).
• Ensemble spread \(\sigma_\text{ens}\): Should equal the root-mean-square error of the ensemble mean if the ensemble is reliable (spread–skill relationship).
• Spaghetti plots: Contours of a single variable for all members simultaneously.

6.4 Reliability and Resolution

A probabilistic forecast is reliable (calibrated) if the stated probability \(p\) of an event matches its long-run frequency of occurrence. Reliability is diagnosed via the reliability diagram (calibration curve) and the rank histogram (Talagrand diagram). A perfectly reliable ensemble has a flat rank histogram.

Resolution measures how much the forecast probabilities deviate from climatology — it is possible to be reliable but uninformative (always forecast climatological probability). A proper scoring rule like the Continuous Ranked Probability Score (CRPS):

\[\text{CRPS}(F, x_o) = \int_{-\infty}^{\infty}(F(x) - \mathbf{1}[x \geq x_o])^2 \, dx\]

jointly measures reliability and resolution; lower is better. The deterministic RMSE is a special case.

---

7. Prediction Horizons

7.1 Nowcasting (0–6 hours)

At the sub-hourly to 6-hour range, extrapolation-based methods compete with and often outperform NWP. The dominant technique is Lagrangian extrapolation: estimate the current motion field of precipitation from a sequence of radar composites, then advect the current reflectivity field forward in time.

Mathematically, the radar reflectivity \(Z(\mathbf{x}, t)\) is assumed to satisfy a transport equation:

\[\frac{\partial Z}{\partial t} + \mathbf{v} \cdot \nabla Z = S\]

where \(\mathbf{v}\) is the motion field (estimated by optical flow, e.g., Lucas-Kanade or a variational method) and \(S\) accounts for growth and decay. State-of-the-art nowcasting systems (PySTEPS, DeepMind NowcastNet) treat \(S\) stochastically, generating ensemble nowcasts with physically realistic small-scale variability.

Why NWP struggles at 0–2 hours: The model requires time to spin up (generate its own precipitation structures from the smooth initial analysis), and the analysis increment from DA is not sufficient to properly initialise rapidly evolving convective systems.

7.2 Short-Range (6 h–3 days) and Medium-Range (3–10 days)

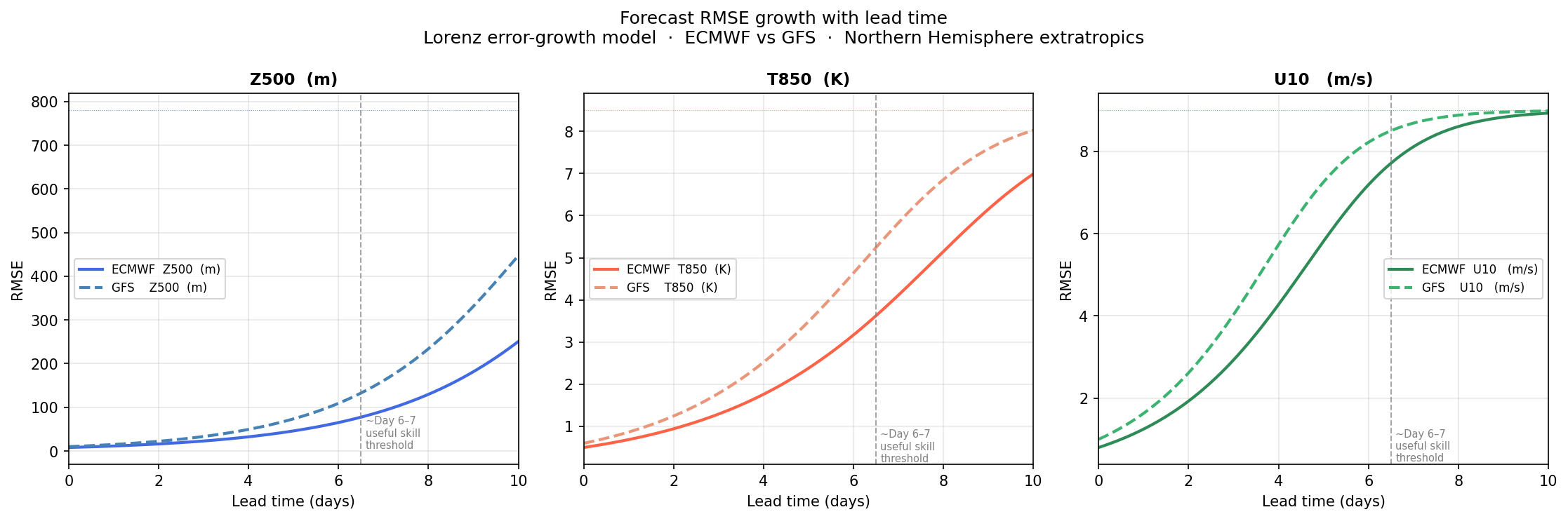

This is the sweet spot for NWP. Skill degrades smoothly following the Lorenz error-growth curve:

\[e(t) \approx e_0 e^{\lambda_1 t} \left(1 - \frac{e_0^2}{e_\infty^2}e^{2\lambda_1 t}\right)^{-1/2}\]

where \(e_0\) is initial error, \(e_\infty\) is the saturation (climatological) error level. The 500 hPa anomaly correlation coefficient (ACC) drops below 0.6 (the conventional useful-skill threshold) at approximately day 6–7 in extratropics. Modern ensemble systems push useful probabilistic information to ~14 days.

7.3 Subseasonal-to-Seasonal (S2S, 2 weeks–1 year)

Beyond ~2 weeks, atmospheric predictability from initial conditions is exhausted (the Lorenz barrier). Predictability at these scales stems from slowly varying boundary conditions:

• Sea-surface temperatures (SSTs): El Niño–Southern Oscillation (ENSO) has a predictability of ~6–12 months and exerts strong global teleconnections.
• Soil moisture and snow cover: Integrators of surface energy balance with memory of weeks to months.
• Stratospheric dynamics: Sudden Stratospheric Warming events (SSWs) couple downward to the troposphere over 2–6 weeks, creating regime predictability windows.
• Madden-Julian Oscillation (MJO): Dominant mode of tropical intraseasonal variability, predictable to ~4 weeks.

S2S forecasts are inherently probabilistic. Skill is expressed as anomaly correlation relative to a climatological baseline, often using hindcast (reforecast) statistics for calibration.

7.4 Climate Projections (Decadal and beyond)

Beyond seasonal timescales, the question shifts from weather to climate. Predictability derives entirely from external forcings (greenhouse gas concentrations, volcanic eruptions, solar variability) and internal low-frequency ocean modes. This is the domain of Earth System Models (ESMs) and is outside the scope of this course.

---

8. Big Data Formats in Meteorology

8.1 GRIB / GRIB2

GRIB (General Regularly-distributed Information in Binary form) is the WMO standard binary format for encoding gridded meteorological data. Virtually all NWP output from ECMWF, NOAA, and national agencies is distributed in GRIB2.

Key features:

• Self-describing: each GRIB message contains a header describing the variable (temperature, wind, geopotential), level (pressure level, height above ground, surface), time (reference time, validity time), and grid definition (Gaussian, regular lat–lon, Lambert conformal, etc.).
• Packing: values are packed as scaled integers; different packing methods (simple, complex, JPEG2000, PNG) provide compression ratios of 3:1 to 10:1.
• Flat structure: a GRIB file is a concatenation of independent GRIB messages; there is no file-level index. Efficient access requires an external index (via eccodes, cfgrib, or wgrib2).

Reading in Python:

import cfgrib
import xarray as xr

ds = xr.open_dataset("gfs.t00z.pgrb2.0p25.f024",
                      engine="cfgrib",
                      filter_by_keys={"typeOfLevel": "isobaricInhPa",
                                      "shortName": "t"})

8.2 NetCDF (Network Common Data Form)

NetCDF (Unidata/UCAR) is the dominant format for scientific gridded data, reanalyses (ERA5, NCEP/NCAR), and model output archives. Version 4 uses HDF5 as the underlying storage format.

Key features:

• Dimensions, variables, and attributes: a NetCDF file is a self-describing dataset with named dimensions (e.g., time, latitude, longitude, level), typed variables (e.g., float32 temperature[time, level, latitude, longitude]), and metadata attributes (units, long name, fill value, coordinate reference system).
• CF Conventions: the Climate and Forecast (CF) metadata conventions define standard names, units, and coordinate systems, enabling generic tools to interpret any conforming file.
• Chunking and compression: HDF5 supports internal chunking (dividing the array into tiles for random access) and DEFLATE compression. Choosing the right chunk shape is critical for performance: chunk along the access pattern.
• Random access: unlike GRIB, any hyperslice of a NetCDF variable can be read without scanning the entire file.

Reading in Python:

import xarray as xr

ds = xr.open_dataset("era5_temperature_2023.nc")
t850 = ds["t"].sel(level=850, method="nearest")  # lazy: no I/O yet
t850_mean = t850.mean(dim="time").compute()        # triggers I/O

8.3 Zarr

Zarr is a modern, cloud-native, chunked array storage format. It addresses the fundamental limitation of NetCDF for cloud workflows: NetCDF's HDF5 format requires efficient byte-range access, which is poorly supported by object stores (S3, GCS, Azure Blob).

Key features:

• Chunk-based: arrays are stored as independent files (or objects), one per chunk. Any chunk can be read without touching others — ideal for parallel access.
• Multiple storage backends: local filesystem, S3/GCS/Azure, ZIP archives, memory.
• Compressors: blosc, lz4, zstd, zlib — often achieving 5–10× compression on meteorological data.
• No file-level lock: multiple processes/workers can read (and write) simultaneously without contention.
• ARCO-ERA5: the ERA5 dataset has been re-encoded in Zarr format (Analysis-Ready Cloud-Optimised ERA5) and stored on Google Cloud Storage, enabling training of global ML weather models at scale without local data downloads.

import xarray as xr
import zarr

# Open ARCO-ERA5 directly from GCS (no local download)
ds = xr.open_zarr(
    "gs://gcp-public-data-arco-era5/ar/full_37-1h-0p25deg-chunk-1.zarr-v3",
    chunks={"time": 48}
)

8.4 Comparison

	GRIB2	NetCDF4	Zarr
Standard body	WMO	Unidata/UCAR	Community / OGC
Primary use	Operational NWP distribution	Scientific archives, reanalyses	Cloud ML training, analysis
Cloud access	Poor (sequential scan)	Moderate (byte-range)	Excellent (native)
Parallelism	Limited	Moderate (read-only)	Full (read/write)
Self-description	Good (GRIB2 sections)	Excellent (CF conventions)	Good (JSON metadata)
Python library	cfgrib, eccodes	netCDF4, xarray	zarr, xarray

---

9. Common Visualizations

9.1 Synoptic Charts and Isobar Maps

The classical tool of operational meteorology. Contours of mean sea level pressure (MSLP) plotted every 4 or 5 hPa reveal the large-scale flow pattern: high-pressure anticyclones (divergent, subsiding, fair weather), low-pressure cyclones (convergent, ascending, cloud and precipitation), and the fronts separating air masses of different origin and temperature.

In Python: matplotlib.pyplot.contour or cartopy with ax.contour(lons, lats, mslp, levels=np.arange(960, 1040, 4), transform=ccrs.PlateCarree()).

9.2 Spatial Heatmaps (Filled Contours)

contourf or pcolormesh maps visualise continuous scalar fields: 2-m temperature anomaly, 24-h precipitation accumulation, sea-surface temperature, wind speed. Diverging colourmaps (e.g., RdBu_r) are appropriate for anomalies; sequential colourmaps for absolute magnitudes. Always label units and include a colorbar with tick marks at physically meaningful values.

9.3 Wind Barbs and Vectors

A wind barb encodes both speed and direction in a single glyph: the staff points into the wind; pennants (50 kt), full barbs (10 kt), and half barbs (5 kt) sum to give the total speed. Standard on synoptic charts and upper-air analyses.

Streamlines and quiver plots (matplotlib.pyplot.streamplot, .quiver) visualise the wind vector field. For large grids, subsample to avoid visual clutter.

9.4 Meteograms

A meteogram is a time-series panel plot for a single location showing the evolution of multiple variables over the forecast period: temperature, dewpoint, precipitation (bar chart), wind (barbs on a time axis), cloud cover, MSLP. The ECMWF's ENS meteogram overlays the deterministic forecast (thick line), ensemble plumes (shaded percentile bands), and climatological quartiles for reference.

In Python: matplotlib figure with multiple Axes sharing the time axis (sharex=True), or plotly for interactive versions.

9.5 Skew-T Log-P Diagrams

The canonical thermodynamic diagram for radiosonde data. Temperature \(T\) and dewpoint \(T_d\) are plotted against \(\log p\) on the vertical axis, with the temperature axis skewed 45° to the right to separate the two curves visually. Overlaid on the diagram are:

• Dry adiabats: lines of constant potential temperature \(\theta = T(p_0/p)^{R/c_p}\).
• Saturated adiabats: lines followed by a parcel lifted past its lifting condensation level (LCL).
• Mixing ratio lines: constant \(q\).

Key derived instability indices are read off geometrically: CAPE (Convective Available Potential Energy, the positive area between the parcel and environment temperature curves above the LFC), CIN (Convective Inhibition, the negative area below), LCL, LFC (Level of Free Convection), EL (Equilibrium Level):

\[\text{CAPE} = g \int_{\text{LFC}}^{\text{EL}} \frac{T_{\text{parcel}} - T_{\text{env}}}{T_{\text{env}}} \, dz\]

In Python: the MetPy library (metpy.plots.SkewT) renders Skew-T diagrams directly from xarray datasets.

9.6 Hovmöller Diagrams

A Hovmöller diagram plots a meteorological variable as a function of longitude (x-axis) and time (y-axis), averaged over a latitude band. Eastward-tilting coherent structures reveal Rossby wave propagation; westward tilt indicates easterly waves (tropical). Essential for diagnosing the MJO and for visualising the evolution of precipitation anomalies along a latitude band.

9.7 Spaghetti Plots and Ensemble Fan Charts

For ensemble output, spaghetti plots draw a single contour (e.g., the 1000 hPa geopotential height \(= 500\) m contour) for every ensemble member simultaneously. Tight spaghetti = high confidence; widely spread spaghetti = high uncertainty.

Fan charts (probability shading) show the ensemble distribution of a 1D time series: the central 10%, 25%, 50%, 75%, and 90% probability envelopes are shaded in decreasing opacity around the ensemble mean.

9.8 Practical Python Stack

Task	Library
Data I/O	xarray, cfgrib, zarr, netCDF4
Meteorological calculations	MetPy
Static maps	cartopy + matplotlib
Interactive maps	hvplot, plotly, folium, leafmap
Large-scale computation	dask (lazy arrays), cupy (GPU)
Statistical analysis	scipy.stats, statsmodels, scikit-learn

---

10. GFS and ECMWF Grids: A Practical Reference

This section provides a hands-on reference for working with the two most important global NWP products: NOAA's GFS and ECMWF's IFS. It covers their grid geometry, release schedules, vertical structure, available variables, and the way forecast error grows with lead time — illustrated with code centred on the Iberian Peninsula.

---

10.1 Grid Geometry

The two models use fundamentally different horizontal discretisations.

GFS — Regular Latitude–Longitude Grid

Since the FV3 dynamical core (2019), GFS output is distributed on a regular 0.25° × 0.25° latitude–longitude grid (there is also a 0.5° and 1.0° product for legacy users). "Regular lat–lon" means every grid cell subtends the same angular size, so cell area shrinks toward the poles.

Property	Value
Grid type	Regular Gaussian / lat-lon (distribution product)
Horizontal spacing	0.25° ≈ 28 km at the equator, ≈ 20 km at 45° N
Coverage	90° S – 90° N, 0° – 359.75° E
Points (0.25°)	1440 × 721 = 1,038,240 per level
Native model grid	Cubed-sphere C768 (≈ 13 km) — regridded to lat-lon for distribution

ECMWF IFS — Octahedral Reduced Gaussian Grid

ECMWF's IFS uses a spectral approach internally (truncation T\(_\text{co}\)1279) but stores its output on a reduced octahedral Gaussian grid or, for most users, on a regular 0.1° grid. The octahedral grid varies the number of points per latitude ring so that all grid cells have roughly equal area — essential for spectral transforms.

Property	Value
Grid type	Octahedral reduced Gaussian (native); regular 0.1° lat-lon (open data)
Horizontal spacing	≈ 9 km native; 0.1° ≈ 11 km at 40° N (open data product)
Coverage	90° S – 90° N, 0° – 359.9° E
Points (0.1°)	3600 × 1801 = 6,483,600 per level
Native spectral truncation	T\(_\text{co}\)1279 (wavenumber space)

---

10.2 Visualising the Grids over the Iberian Peninsula

The plot below shows all grid nodes for both models over the Iberian Peninsula in Lambert Conformal projection. GFS nodes are shown in blue; ECMWF 0.1° nodes in orange (subsampled every other node to avoid overplotting). See src/scripts/plot_gfs_ecmwf_grids.py for the source code.

What the plot reveals:

• Each GFS 0.25° cell covers roughly 28 km × 20 km at 40° N. Over the Peninsula (~15° × 10°) there are ≈ 60 × 40 = 2,400 GFS nodes.
• Each ECMWF 0.1° cell covers roughly 11 km × 11 km at 40° N — about 6× denser in area. The same domain holds ≈ 150 × 95 = 14,250 ECMWF nodes.
• Complex topography (Pyrenees, Sistema Central, Sierra Nevada) is better resolved in the ECMWF grid, though the effective resolution is ~2–3× the nominal grid spacing due to spectral smoothing.

---

10.3 Forecast Release Schedule

Both models cycle through multiple runs per day. A run (or cycle) is identified by its reference time (also called initialisation time or T+0), always expressed in UTC.

GFS Release Schedule

Run	Analysis cut-off	First output available (approx.)
00 UTC	~03:30 UTC	~04:30 UTC (18 h forecast)
06 UTC	~09:30 UTC	~10:30 UTC
12 UTC	~15:30 UTC	~16:30 UTC
18 UTC	~21:30 UTC	~22:30 UTC

GFS ingests observations in a 6-hour data window centred on the analysis time (±3 h), runs 3D-Var/EnKF data assimilation, and then launches the forecast integration. The 00 UTC and 12 UTC runs produce the full 384-hour (16-day) deterministic forecast; the 06 UTC and 18 UTC runs are truncated to 240 hours. GEFS ensemble runs (31 members) are launched from the 00 and 12 UTC cycles out to 840 hours (35 days).

Latency from observation to availability: the end-to-end pipeline (observation collection via GTS → quality control → data assimilation → forecast integration → post-processing → dissemination) typically takes 3.5–5 hours for the 00 and 12 UTC cycles. Data are published incrementally to NOAA's NOMADS servers as each forecast hour completes.

ECMWF IFS Release Schedule

Run	Analysis cut-off	Deterministic available	ENS available
00 UTC	~06:00 UTC	~08:30 UTC	~12:00 UTC
12 UTC	~18:00 UTC	~20:30 UTC	~00:00 UTC (+1 day)

ECMWF runs two main cycles per day. The 12-hour 4D-Var window means the 00 UTC analysis ingests observations from 21 UTC the previous day to 03 UTC, while the 12 UTC analysis uses 09–15 UTC observations.

The ECMWF open data initiative (launched 2022) publishes a subset of the deterministic and ensemble output at 0.25° resolution freely, with a delay of ~3 hours after model availability. The full-resolution 0.1° product requires a commercial licence or a member-state agreement.

---

10.4 Forecast Horizons and Temporal Resolution

GFS Temporal Output Structure

Lead time range	Output interval	Steps
0 – 120 h	Every 1 hour	121 steps
123 – 384 h	Every 3 hours	88 steps

Total: 209 time steps per full 00/12 UTC run.

ECMWF IFS Temporal Output Structure

Product	Lead time range	Output interval
Deterministic (HRES)	0 – 90 h	Every 1 hour
Deterministic (HRES)	93 – 240 h	Every 3 hours
Ensemble (ENS)	0 – 144 h	Every 3 hours
Ensemble (ENS)	147 – 360 h	Every 6 hours
Extended range (EPS-LR)	0 – 1104 h (46 days)	Every 6 hours

The deterministic HRES run uses T\(_\text{co}\)1279 (≈ 9 km). The ensemble ENS runs 51 members (1 control + 50 perturbed) at T\(_\text{co}\)639 (≈ 18 km). The extended-range forecast is produced on Thursdays and Mondays.

---

10.5 Vertical Structure: Layers and Pressure Levels

Both models use hybrid sigma-pressure coordinates for their native vertical grid, transitioning from terrain-following (σ) near the surface to pure pressure levels in the stratosphere.

GFS Vertical Levels

Specification	Value
Native vertical levels	127 hybrid levels
Top of atmosphere	0.2 hPa (~60 km, lower mesosphere)
Near-surface levels	~20 levels below 1 km AGL
Output pressure levels (standard)	34 mandatory levels

GFS standard output pressure levels (hPa):

1000, 975, 950, 925, 900, 875, 850, 825, 800, 775, 750, 725, 700,
650, 600, 550, 500, 450, 400, 350, 300, 250, 200, 150, 100, 70, 50,
30, 20, 10, 7, 5, 3, 2, 1

ECMWF IFS Vertical Levels

Specification	Value
Native model levels	137 hybrid levels
Top of atmosphere	0.01 hPa (~80 km, mesosphere)
Near-surface levels	~40 levels below 1 km AGL (finest ≈ 10 m)
Output pressure levels (standard)	37 mandatory levels

ECMWF standard pressure levels (hPa):

1000, 925, 850, 700, 600, 500, 400, 300, 250, 200, 150, 100, 70, 50,
30, 20, 10, 7, 5, 3, 2, 1

(Open data product; full 137-level native output is available to member states.)

Why more levels near the surface? The planetary boundary layer (lowest ~1–2 km) contains the strongest turbulence, moisture gradients, and diurnal cycle. High vertical resolution here is critical for 2-m temperature, surface wind, and fog prediction — especially over complex terrain like the Ebro valley or coastal areas of the Peninsula.

---

10.6 Key Forecast Variables

Both models output hundreds of variables. The table below lists the most operationally important ones, grouped by type.

Surface / Single-Level Variables

Short name	Long name	Unit	Notes
t2m	2-metre temperature	K	Diagnostic: interpolated to 2 m AGL
d2m	2-metre dewpoint temperature	K	→ relative humidity via Magnus formula
u10, v10	10-metre wind components	m s⁻¹	Diagnostic: interpolated to 10 m AGL
msl	Mean sea-level pressure	Pa	Reduced from surface pressure
tp	Total precipitation	m (accumulated)	GFS: APCP; ECMWF: tp
lcc, mcc, hcc	Low/medium/high cloud cover	0–1	Fraction of sky covered
tcc	Total cloud cover	0–1
cape	Convective available potential energy	J kg⁻¹	Thunderstorm potential
cin	Convective inhibition	J kg⁻¹	Convective cap
sst	Sea-surface temperature	K	From coupled ocean or prescribed
sm	Soil moisture	m³ m⁻³	Affects 2-m T and boundary layer
10fg	10-m wind gust	m s⁻¹	Diagnostic from boundary-layer scheme
ssrd	Surface solar radiation downward	W m⁻² (accumulated)	Critical for solar energy forecasting
strd	Surface thermal radiation downward	W m⁻² (accumulated)

Pressure-Level Variables

Short name	Long name	Unit
t	Temperature	K
u, v	Wind components	m s⁻¹
w (omega)	Vertical velocity	Pa s⁻¹
z	Geopotential	m² s⁻² (divide by 9.807 for geopotential height in metres)
q	Specific humidity	kg kg⁻¹
r	Relative humidity	%
vo	Vorticity	s⁻¹
d	Divergence	s⁻¹

The 500 hPa geopotential (z at 500 hPa) is the single most widely used upper-air field in synoptic meteorology — it encodes the large-scale wave pattern and is the standard variable for objective forecast verification.

---

10.7 Forecast Error Growth with Lead Time

Forecast error grows because the atmosphere is a chaotic system (Section 1.4). The practical consequence is that different variables and spatial scales lose predictability at different rates.

The Lorenz Error-Growth Curve

Small initial errors amplify at the rate set by the largest Lyapunov exponent \(\lambda_1 \approx 0.35\ \text{day}^{-1}\) (doubling time ≈ 2 days), eventually saturating at the climatological variability level \(e_\infty\):

\[e(t) = \frac{e_0\, e^{\lambda_1 t}}{\sqrt{1 + (e_0/e_\infty)^2(e^{2\lambda_1 t} - 1)}}\]

The plot below shows typical RMSE growth curves for 850 hPa temperature and 500 hPa geopotential height, using parameters representative of published verification scores. See src/scripts/plot_lorenz_error_growth.py for the source code.

Anomaly Correlation Coefficient (ACC) — The Standard Skill Metric

Operational centres verify 500 hPa geopotential height forecasts against the verifying analysis using the ACC:

\[\text{ACC}(t) = \frac{\sum_{i,j} X'_f(t)\, X'_a}{\sqrt{\sum_{i,j} X_f^{\prime 2}(t) \cdot \sum_{i,j} X_a^{\prime 2}}}\]

where \(X' = X - X_\text{clim}\) denotes the anomaly from climatology and the sum is over all Northern Hemisphere extratropical grid points (20–80° N). An ACC of 0.6 is the conventional threshold below which a forecast has no useful synoptic skill.

Model	Day ACC drops below 0.6 (approx., Z500, N. Hemisphere extratropics)
ECMWF HRES (2024)	Day 7.0 – 7.5
GFS (2024)	Day 6.0 – 6.5
ECMWF ENS mean	Day 8.0 – 9.0
Persistence	Day 2 – 3
Climatology	Day 0 (ACC = 0 by construction)

The ensemble mean outperforms the deterministic run beyond day ~4 because averaging over members cancels unpredictable small-scale noise, retaining only the predictable signal.

Variable-Dependent Predictability Limits

Variable	Predictability horizon (approx.)	Reason
500 hPa geopotential (Z500)	6–8 days (deterministic)	Large-scale Rossby waves; slow error growth
850 hPa temperature	5–7 days	Driven by large-scale dynamics
2-m temperature	4–6 days	Influenced by boundary-layer processes
Surface wind speed	3–5 days	Affected by mesoscale systems
24-h precipitation location	2–4 days	Depends on convection triggering
24-h precipitation amount	1–3 days	Highly nonlinear; sensitive to moisture
Tropical cyclone track	5–7 days	Predictable large-scale steering flow
Tropical cyclone intensity	2–3 days	Rapid intensification is highly chaotic
Fog onset	12–24 h	Submesoscale boundary-layer processes

Implications for Spain / Iberian Peninsula

The Peninsula's complex orography (Pyrenees, Cantabrian Range, Iberian System, Betic Cordillera) introduces additional sources of forecast uncertainty:

• Orographic precipitation: Windward–leeward asymmetry is sensitive to the exact synoptic flow. GFS at 0.25° (~28 km) smooths mountain ridges significantly; ECMWF at 0.1° (~11 km) still under-resolves peaks above 2000 m. AEMET's HARMONIE-AROME at 2.5 km is necessary for reliable precipitation forecasts in the Pyrenees.
• Cierzo and Tramontane: Channelled valley winds in the Ebro valley depend on the pressure gradient across the Pyrenees, predictable to ~4 days.
• Gota Fría (DANA): Cut-off low systems over the western Mediterranean are notoriously difficult — the convective triggering location has a predictability of only 1–2 days even though the large-scale circulation may be predictable to 5–7 days.
• Calima events: Saharan dust intrusions depend on synoptic-scale circulation over North Africa, predictable to ~5 days in terms of arrival timing, but dust concentration is uncertain.

---

• Holton & Hakim — An Introduction to Dynamic Meteorology (5th ed.): rigorous treatment of the primitive equations and atmospheric dynamics.
• Kalnay — Atmospheric Modeling, Data Assimilation and Predictability: the standard graduate text on NWP and DA.
• Evensen — Data Assimilation: The Ensemble Kalman Filter (2nd ed.): comprehensive treatment of EnKF theory and practice.
• Bauer, Thorpe & Brunet (2015) — The quiet revolution of numerical weather prediction, Nature 525, 47–55: an accessible overview of modern NWP for a mathematical audience.
• Hersbach et al. (2020) — The ERA5 global reanalysis, QJRMS 146, 1999–2049: the primary reference for ERA5.
• Rasp et al. (2024) — WeatherBench 2: benchmark for ML weather models against ECMWF.
